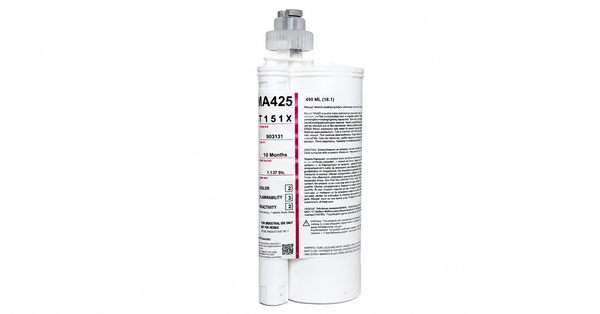

PLEXUS MA425 | Krayden

Main features

30-35 Minute Working Time
Non-Sag Thixotropic Dispensing
30-50% Typical Elongation

Product Description

Plexus MA425 Methacrylate Structural Adhesive combines a two-part 10:1 methacrylate system with a 30-35 minute working window for structural bonding of composite, thermoplastic, and metal assemblies. Its non-sag thixotropic consistency supports controlled dispensing on structural joints and helps the bead remain in place during assembly. Typical cured tensile strength is 2,565-3,315 psi with 30-50% elongation, combining load-bearing capability with joint flexibility. The product is used in transportation and marine manufacturing for composite bonding and for joining thermoplastics, coated metals, and raw metals prepared with PC120 cleaner/conditioner.

Key features

Extended assembly time: A 30-35 minute working window supports structural bonding of larger or more complex assemblies.
Non-sag dispensing: Thixotropic flow helps the adhesive remain in place during application.
Strength with elongation: Typical tensile strength is 2,565-3,315 psi with 30-50% elongation.

Applications / Suitable for

Transportation and marine structural assemblies using composites, thermoplastics, coated metals, or PC120-prepared raw metals.

Technical Specifications

No specifications available.

Additional Information

Technical properties

As supplied / before processing

Values are typical. Viscosity and gap data are reported at 23 deg C unless otherwise noted.

Property	Value	Unit	Method / condition
Mix ratio	10:1	-	Two-part system
Working time	30-35	min	Mixed adhesive
Part A viscosity	100-125	x 1,000 cP	Typical at 23 deg C
Part B viscosity	35-70	x 1,000 cP	Typical at 23 deg C
Maximum gap fill	0.375 (9.5)	in (mm)	Typical joint-design value
