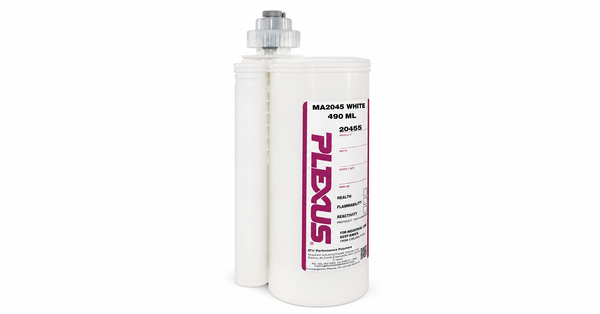

PLEXUS MA2045 | Krayden

Main features

Extended 45-50 Minute Work Window
Vertical Non-Sag Placement
Deep 38 mm Gap Bonding

Product Description

Plexus MA2045 is a two-part, 10:1 methacrylate adhesive for structural bonding of composite, thermoplastic, and metal assemblies where thick joints or vertical placement are required. The non-sagging formulation has a 45-50 minute work time at 75 deg F (23.9 deg C) and a typical gap tolerance of 0.75-38 mm. It is formulated to limit sag and slide on vertical surfaces and to avoid boiling in gaps up to 38 mm. Typical cured properties include 15.2-20.0 MPa tensile strength and 90-125% elongation.

Key features

0.75-38 mm Thick-Gap Bonding: Accommodates unusually deep structural joints.
45-50 Minute Work Window: Provides extended positioning time at 75 deg F (23.9 deg C).
Vertical Non-Sag Application: Limits sag and slide during placement on vertical surfaces.

Applications

Applications include structural bonding of composites, thermoplastics, and metals, including vertical-surface and thick-gap assemblies.

Technical Specifications

No specifications available.

Additional Information

Technical properties

As-supplied / before-processing properties

Values are typical for the separate components and processing at 75 deg F (23.9 deg C) where stated.

Property	Value	Unit	Method / condition
Component color - Part A / Part B	Off-white / blue or black		Typical uncured
Mix ratio by volume	10:1		Part A to Part B
Component density - Part A	0.94	g/mL	Typical uncured
Component density - Part B	1.07	g/mL	Typical uncured
Component viscosity - Part A	180-220	x 1,000 cP	Typical uncured
Component viscosity - Part B	35-70	x 1,000 cP	Typical uncured
Work time	45-50	minutes	At 75 deg F (23.9 deg C)
Time to 500 psi (3.4 MPa)	100-105	minutes	At 75 deg F (23.9 deg C)
