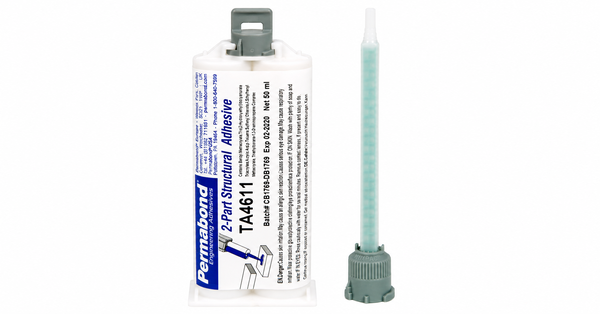

PERMABOND TA4611
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Microbead-Free Small-Gap Bonding
- Primer-Free PP and PE Assembly
- Controlled 0.5 mm Gap Filling
Product Description
Permabond TA4611 is a two-part, 1:1 toughened acrylic adhesive developed for polypropylene and polyethylene without primer or costly surface treatment. Its microbead-free formulation is intended for joints with smaller gaps while retaining compatibility with selected metals and composites. The transparent to pale-yellow mixed adhesive supports a maximum gap of 0.5 mm. At 23 deg C, typical pot life is 4 to 6 minutes, fixture strength develops in 10 to 16 minutes, and handling strength in 40 to 50 minutes. Cured shear results include 14 N/mm^2 on carbon fiber, 13 N/mm^2 on epoxy FRP, and 8 N/mm^2 on HDPE.
Key features
- Microbead-Free Small-Gap Bonding: Supports joints up to the 0.5 mm maximum gap.
- Primer-Free Polyolefins: Bonds polypropylene and polyethylene without primer or costly surface treatment.
- Dissimilar-Material Assembly: Supports selected metal, composite, and polyolefin substrate combinations.
Applications
Applications include smaller-gap bonding of polypropylene and polyethylene, plus selected metal, composite, and dissimilar-material assemblies.
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Values identify the separate Part A and Part B components or the mixed adhesive, as stated.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A viscosity | 20,000 to 30,000 | mPa s | At 25 deg C |
| Part B viscosity | 10,000 to 15,000 | mPa s | At 25 deg C |
| Specific gravity | 1.0 | Part A and Part B | |
| Mix ratio | 1:1 | Part A to Part B | |
| Maximum gap fill | 0.5 | mm | Microbead-free formulation |
| Pot life | 4 to 6 | minutes | 2 g + 2 g at 23 deg C |
| Fixture time | 10 to 16 | minutes | 0.1 N/mm^2 shear strength at 23 deg C |
| Handling time | 40 to 50 | minutes | 0.3 N/mm^2 shear strength at 23 deg C |
After-processing / final-state properties
Strength values are typical cured results for the listed substrates and ISO 4587 test method.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shear strength - polypropylene | >8 | N/mm^2 | ISO 4587; substrate failure observed |
| Shear strength - polyethylene | >7 | N/mm^2 | ISO 4587; substrate failure observed |
| Shear strength - HDPE | 8 | N/mm^2 | ISO 4587 |
| Shear strength - mild steel | 11 | N/mm^2 | ISO 4587 |
| Shear strength - stainless steel | 9 | N/mm^2 | ISO 4587 |
| Shear strength - aluminum to PP | 8 | N/mm^2 | ISO 4587 |
| Shear strength - carbon fiber | 14 | N/mm^2 | ISO 4587 |
| Shear strength - epoxy FRP | 13 | N/mm^2 | ISO 4587 |
